IRF 配置

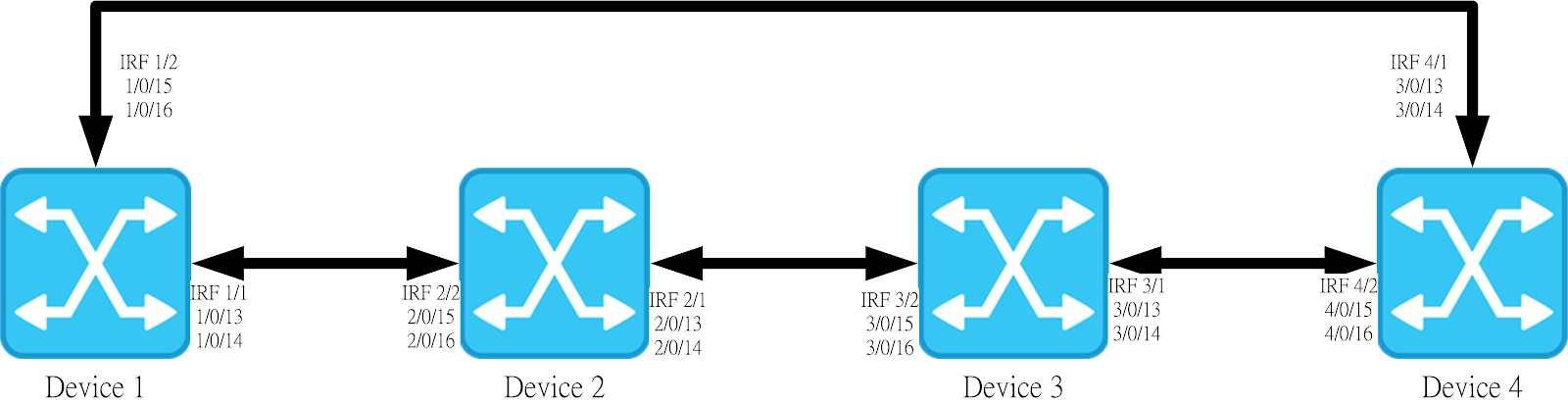

目標：將四台 HPE 1950 12XGT 以 IRF 採 Ring Topology 堆疊
建議準備工作：
    1. 將系統版本升級到同一個版本
      • display version
    2. 清除所有設定
      • reset saved-configuration
    3. 決定 domain id、priority(master/standby)、member id
步驟：
  1. assign IRF Domain ID
  2. assign IRF Member ID
  3. assign priority number (0~32; large is high priority)
  4. review irf configuration
  5. shutdown IRF member interface
  6. assign interface to logical IRF port
  7. plug the LAN Cable
  8. undo shutdown IRF member interface
  9. save configuration and reboot
  10. activate the pending IRF configuration
Device 1
Device 2
Device 3
Device4
<Device-1>system view
[Device-1] irf doamin 1031254
[Device-1] irf member 1 renumber 1
[Device-1] irf member 1 priority 32
[Device-1] display irf
[Device-1] save
[Device-1] reboot
<Device-2>system view
[Device-2] irf doamin 1031254
[Device-2] irf member 1 renumber 2
[Device-2] display irf
[Device-2] save
[Device-2] reboot
[Device-2] irf member 2 priority 24
<Device-3>system view
[Device-3] irf doamin 1031254
[Device-3] irf member 1 renumber 3
[Device-3] display irf
[Device-3] save
[Device-3] reboot
[Device-3] irf member 3 priority 16
<Device-4>system view
[Device-4] irf doamin 1031254
[Device-4] irf member 1 renumber 4
[Device-4] display irf
[Device-4] save
[Device-4] reboot
[Device-4] irf member 4 priority 8
[Device-1] interface TenGigabitEthernet 1/0/13
[Device-1-Ten-GigabitEthernet1/0/13] shutdown
[Device-1] interface TenGigabitEthernet 1/0/14
[Device-1-Ten-GigabitEthernet1/0/14] shutdown
[Device-1] quit
[Device-1] irf-port 1/1
[Device-1-irf-port] port group interface TenGigabitEthernet 1/0/13
[Device-1-irf-port] port group interface TenGigabitEthernet 1/0/14
[Device-1-irf-port] quit
[Device-2] interface TenGigabitEthernet 2/0/15
[Device-2-Ten-GigabitEthernet2/0/15] shutdown
[Device-2] interface TenGigabitEthernet 2/0/16
[Device-2-Ten-GigabitEthernet2/0/16] shutdown
[Device-2] quit
[Device-2] irf-port 2/2
[Device-2-irf-port] port group interface TenGigabitEthernet 2/0/15
[Device-2-irf-port] port group interface TenGigabitEthernet 2/0/16
[Device-2-irf-port] quit


[plug the cable of IRF interface]
[plug the cable of IRF interface]


[Device-1] interface TenGigabitEthernet 1/0/13
[Device-1-Ten-GigabitEthernet1/0/13] undo shutdown
[Device-1] interface TenGigabitEthernet 1/0/14
[Device-1-Ten-GigabitEthernet1/0/14] undo shutdown
[Device-1-Ten-GigabitEthernet1/0/14] quit
[Device-1] quit
<Device-1> save
[Device-2] interface TenGigabitEthernet 2/0/15
[Device-2-Ten-GigabitEthernet2/0/15] undo shutdown
[Device-2] interface TenGigabitEthernet 2/0/16
[Device-2-Ten-GigabitEthernet2/0/16] undo shutdown
[Device-2-Ten-GigabitEthernet2/0/16] quit
[Device-2] quit
<Device-2> save


[Device-1] irf-port-configuration active
[Device-2] irf-port-configuration active
[will reboot….]


review the IRF status
save IRF configuration




[Device-2] interface TenGigabitEthernet 2/0/13
[Device-2-Ten-GigabitEthernet2/0/13] shutdown
[Device-2] interface TenGigabitEthernet 2/0/14
[Device-2-Ten-GigabitEthernet2/0/14] shutdown
[Device-2] quit
[Device-2] irf-port 2/1
[Device-2-irf-port] port group interface TenGigabitEthernet 2/0/13
[Device-2-irf-port] port group interface TenGigabitEthernet 2/0/14
[Device-2-irf-port] quit
[Device-3] interface TenGigabitEthernet 3/0/15
[Device-3-Ten-GigabitEthernet3/0/15] shutdown
[Device-3] interface TenGigabitEthernet 3/0/16
[Device-3-Ten-GigabitEthernet2/0/16] shutdown
[Device-3] quit
[Device-3] irf-port 3/2
[Device-3-irf-port] port group interface TenGigabitEthernet 3/0/15
[Device-3-irf-port] port group interface TenGigabitEthernet 3/0/16
[Device-3-irf-port] quit


[plug the cable of IRF interface]
[plug the cable of IRF interface]


[Device-2] interface TenGigabitEthernet 2/0/13
[Device-2-Ten-GigabitEthernet2/0/13] undo shutdown
[Device-2] interface TenGigabitEthernet 2/0/14
[Device-2-Ten-GigabitEthernet2/0/14] undo shutdown
[Device-2-Ten-GigabitEthernet2/0/14] quit
[Device-2] quit
<Device-2> save
[Device-3] interface TenGigabitEthernet 3/0/15
[Device-3-Ten-GigabitEthernet3/0/15] undo shutdown
[Device-3] interface TenGigabitEthernet 3/0/16
[Device-3-Ten-GigabitEthernet3/0/16] undo shutdown
[Device-3-Ten-GigabitEthernet3/0/16] quit
[Device-3] quit
<Device-3> save


[Device-2] irf-port-configuration active
[Device-3] irf-port-configuration active
[will reboot….]


review the IRF status
save IRF configuration




[Device-3] interface TenGigabitEthernet 3/0/13
[Device-3-Ten-GigabitEthernet3/0/13] shutdown
[Device-3] interface TenGigabitEthernet 3/0/14
[Device-3-Ten-GigabitEthernet3/0/14] shutdown
[Device-3] quit
[Device-3] irf-port 3/1
[Device-3-irf-port] port group interface TenGigabitEthernet 3/0/13
[Device-3-irf-port] port group interface TenGigabitEthernet 3/0/14
[Device-3-irf-port] quit
[Device-4] interface TenGigabitEthernet 4/0/15
[Device-4-Ten-GigabitEthernet4/0/15] shutdown
[Device-4] interface TenGigabitEthernet 4/0/16
[Device-4-Ten-GigabitEthernet4/0/16] shutdown
[Device-4] quit
[Device-4] irf-port 4/2
[Device-4-irf-port] port group interface TenGigabitEthernet 4/0/15
[Device-4-irf-port] port group interface TenGigabitEthernet 4/0/16
[Device-4-irf-port] quit


[plug the cable of IRF interface]
[plug the cable of IRF interface]


[Device-3] interface TenGigabitEthernet 3/0/13
[Device-3-Ten-GigabitEthernet3/0/13] undo shutdown
[Device-3] interface TenGigabitEthernet 3/0/14
[Device-3-Ten-GigabitEthernet3/0/14] undo shutdown
[Device-3-Ten-GigabitEthernet3/0/14] quit
[Device-3] quit
<Device-3> save
[Device-4] interface TenGigabitEthernet 4/0/15
[Device-4-Ten-GigabitEthernet4/0/15] undo shutdown
[Device-4] interface TenGigabitEthernet 4/0/16
[Device-4-Ten-GigabitEthernet4/0/16] undo shutdown
[Device-4-Ten-GigabitEthernet4/0/16] quit
[Device-4] quit
<Device-4> save


[Device-3] irf-port-configuration active
[Device-4] irf-port-configuration active
[will reboot….]


review the IRF status
save IRF configuration

[Device-1] interface TenGigabitEthernet 1/0/15
[Device-1-Ten-GigabitEthernet1/0/15] shutdown
[Device-1] interface TenGigabitEthernet 1/0/16
[Device-1-Ten-GigabitEthernet1/0/16] shutdown
[Device-1] quit
[Device-1] irf-port 1/2
[Device-1-irf-port] port group interface TenGigabitEthernet 1/0/15
[Device-1-irf-port] port group interface TenGigabitEthernet 1/0/16
[Device-1-irf-port] quit


[Device-4] interface TenGigabitEthernet 3/0/13
[Device-4-Ten-GigabitEthernet3/0/13] shutdown
[Device-4] interface TenGigabitEthernet 3/0/14
[Device-4-Ten-GigabitEthernet3/0/14] shutdown
[Device-4] quit
[Device-4] irf-port 3/1
[Device-4-irf-port] port group interface TenGigabitEthernet 3/0/13
[Device-4-irf-port] port group interface TenGigabitEthernet 3/0/14
[Device-4-irf-port] quit
[plug the cable of IRF interface]


[plug the cable of IRF interface]
[Device-1] interface TenGigabitEthernet 1/0/15
[Device-1-Ten-GigabitEthernet1/0/15] undo shutdown
[Device-1] interface TenGigabitEthernet 1/0/16
[Device-1-Ten-GigabitEthernet1/0/16] undo shutdown
[Device-1-Ten-GigabitEthernet1/0/16] quit
[Device-1] quit
<Device-1> save


[Device-4] interface TenGigabitEthernet 4/0/13
[Device-4-Ten-GigabitEthernet4/0/13] undo shutdown
[Device-4] interface TenGigabitEthernet 4/0/14
[Device-4-Ten-GigabitEthernet4/0/14] undo shutdown
[Device-4-Ten-GigabitEthernet4/0/14] quit
[Device-4] quit
<Device-4> save
[Device-1] irf-port-configuration active
[will not reboot….because Device-1 is in the IRF member]


[Device-4] irf-port-configuration active



review the IRF status
save IRF configuration
